Defrosting Machine for tuna MKS-500
Defrosting machine for tuna Series⑮
■model MKS-500
(skinless loin,block,fence)
| Dimension(Machine) | 5260×1990×H2000 |
| Max.material size | 200H×800L |
| Speed | 3～20ｍ/min |
| Power Supply | 3.7KW 3Phase 200V |
| Weight | 2.5t |

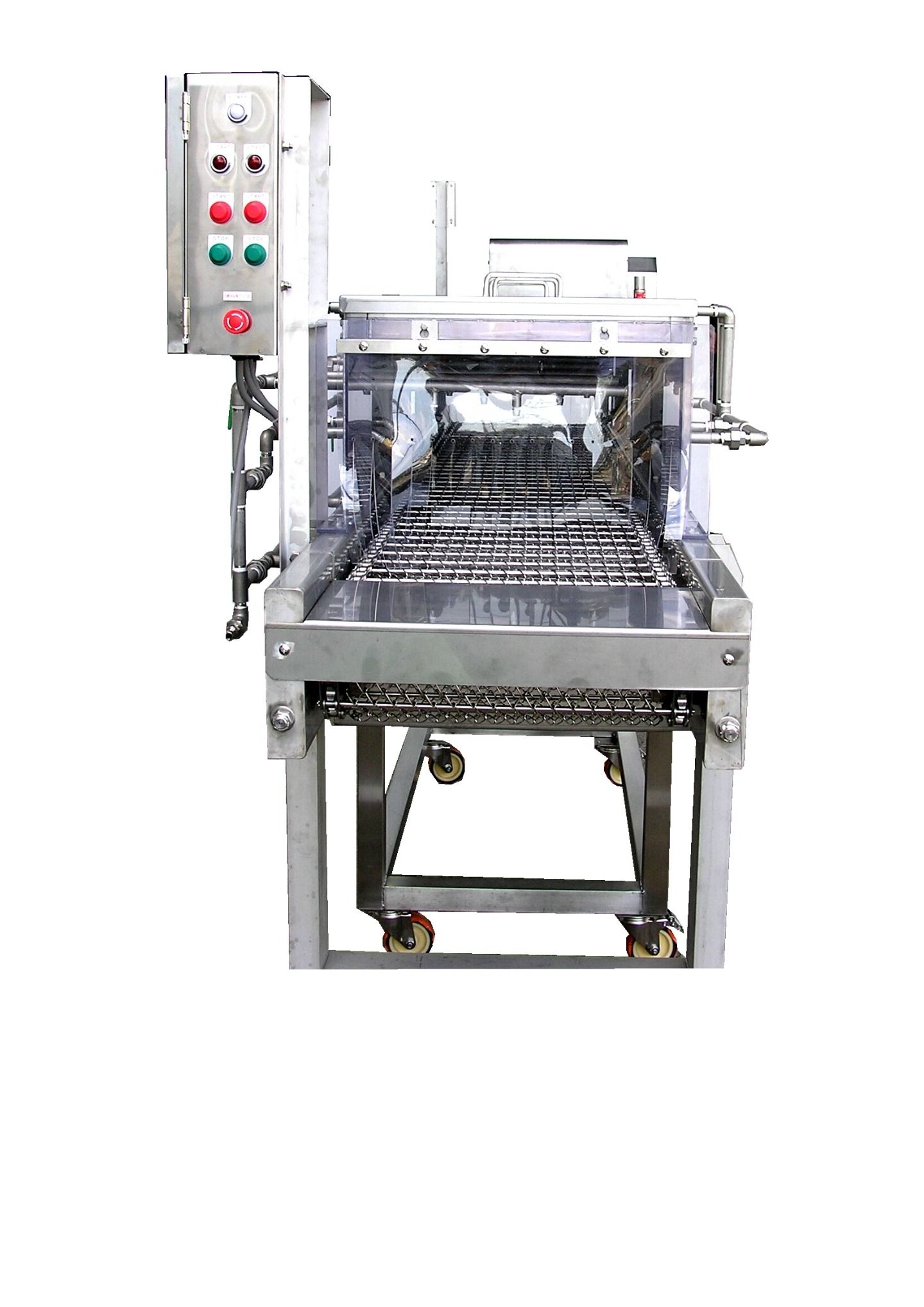

Washing/Defrosting/Steilizing Conveyer machine for tuna MKS-300
Washing/Defrosting/Steilizing Conveyer machine for tuna Series⑯
■model MKS-300
(Enable to sterilize,defrost,and wash tuna by powerful water jet generated through special nozzle）
■Continuous feeding can shorten the working time
■With autmatic feed water
■Powerful pump specialized to extremely high pressure
Washing/Defrosting/Steilizing Conveyer machine for tunaMKS-300
■Specification (unit:mm)
| Container size | 400W×600L×100H |
| Speed | V＝3～15ｍ/min |
| (Continuous variable speed control by inverter) | |
| Capacity | 240 Pieces /h |
| Power Supply(conveyer) | 0.4KW 3Phase 200V |
| Power Supply(High Pressure Pump) | 3.7KW 3Phase 200V×2 |
with autmatic feed water
Powerful pump specialized to extremely high pressure

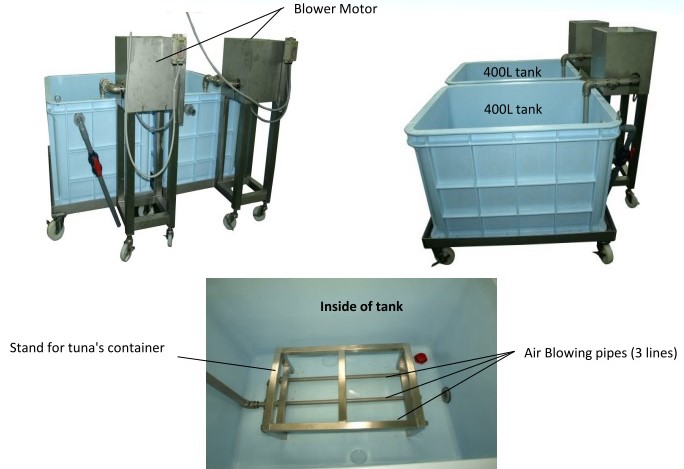

Tsuna Defroster KS-20
Tsuna Defroster Series⑰
■model KS-20
Defrosting & Sterilizing & Washing Machine
Suitable for processing frozen tuna to chilled block and tuna mince
■Defrosting / Sterilizing / Washing
Option1
Warm water supplied from boiler
Option2
Sterilized water/Electrolyzed water

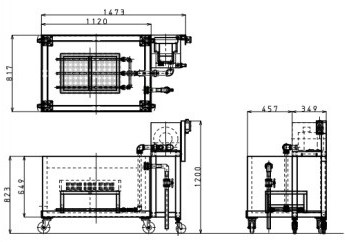

■Outline Drawing ■Specification
| Dimension of tank | 1120L×817W×694H |
| Dimension of machine | 1473L×817W×1200H |
| Blower motor | 0.4KW 3phase AC200V |

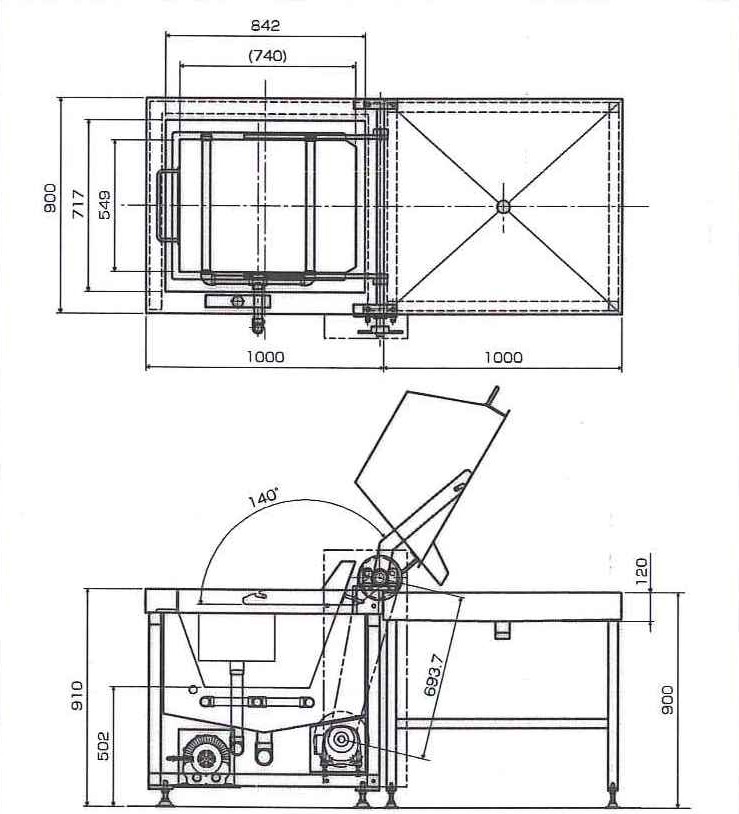

Automatic turning over defrosting/washing Machine KS-40
Automatic turning over defrosting/washing Machine Series⑱
■model KS-40
Equally washing,sterilizing,and defrosting for foods
Such as tuna,vegetables,etc.
■Equally washing / sterilizing / Defrostin
Specification （unit:mm)
| Cage Capacity | 130ℓ |
| Water Tank Capacity | 280ℓ |
| Cage Hole Diameter | 3φ～φ10 |
| Dimention(Machine) | L1000×W900×H1100 |
| Drive Motor | 200V 4P 0.2KW |
| Air Blower Motor | 200V 4P 0.2KW |

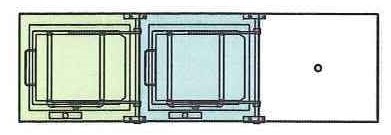

Production line installation An example
Flexible Combination depending on the installing location
●2 Series Straight Type
●2 Series 90 degree Type
Specification (unit:mm)
