A：Freeze tuna bonito processing machinery

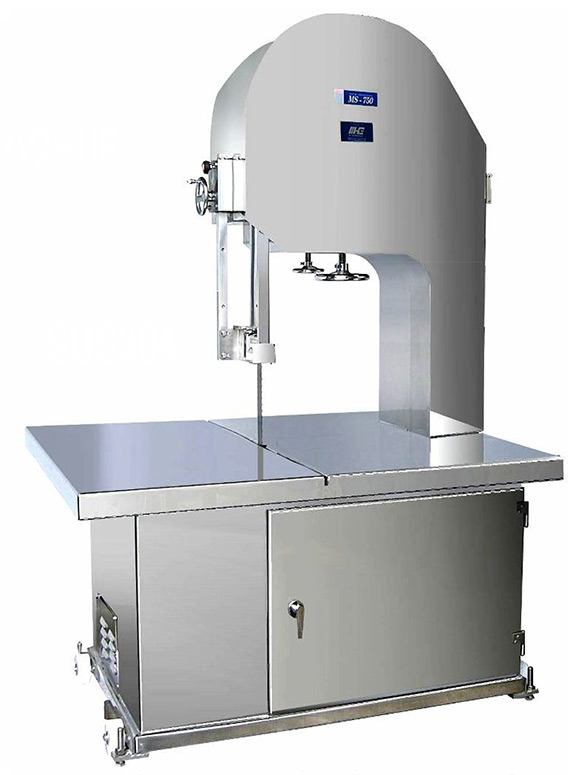

Big-size band saw for fresh frozen fish MS-750
Big-size band saw for fresh frozen fish Series①
■Model MS-750
The processing efficiency greatly increases by this one machine.
■High Speed Rotation
It achieves the increasing processing efficiency and the beautiful section by increasing the rate of rotation
■Power Up
It equip the motor which goes 3.7kw to 5.5kw. It is allround player starting bonito up to tuna. It reduces the task of workers.
■SUS304
We use a stainless steel frame of SUS304 which has excellent durability. With 10 years warranty.
■Gutter. Adhere
You can choose a style of table surface depends upon the stuff you cut.
■Stainless steel tire
We equip this stainless steel tire. It solves the problem of running off of saw blade by the rust corrosion. It is easy to wash by water.

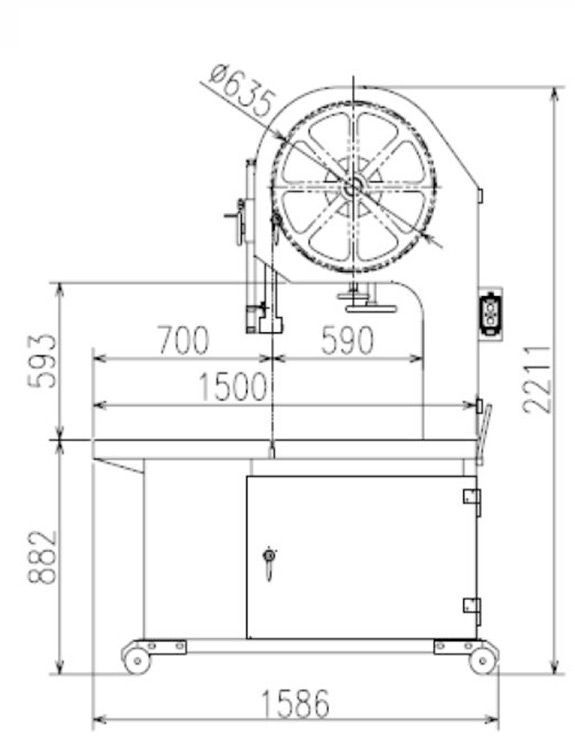

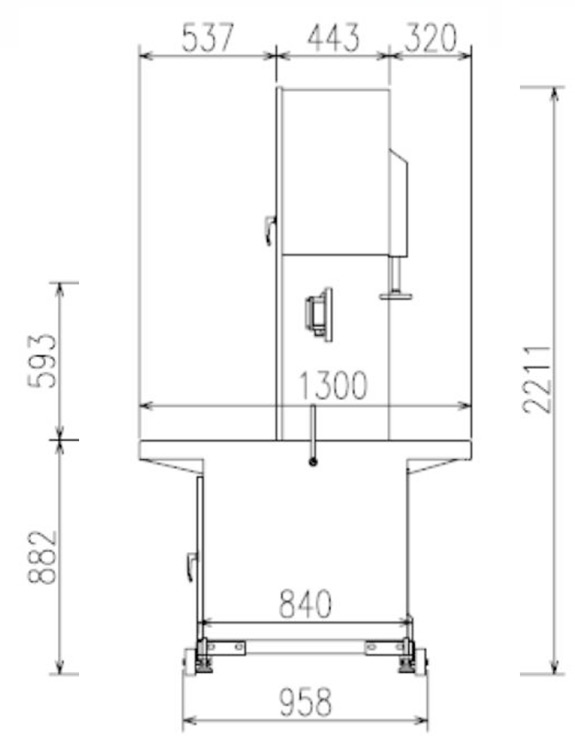

■Machine spesification (unit:mm)
Exclusive for four pieces cutting of frozen bonito and tuna
<Standard Machine Specifications>
| Maximumpullcuttingheight | 600H |
| Tabledimension | 1500W×1300D×2200H |
| Alloverweight | 730kg |
| Motor | 3.7kw |
| Powersource | Three-phasecircuit Hz50/60 AC200V~440V |
<Specifications of machine for tuna>
| Maximumpullcuttingheight | 700H |
| Tabledimensio | 1500W×1300D×2300H |
| Alloverweight | 750kg |
| Motor | 5.5kw |
| Powersource | Three-phasecircuit Hz50/60 AC200V~440V |
■Machine specifications

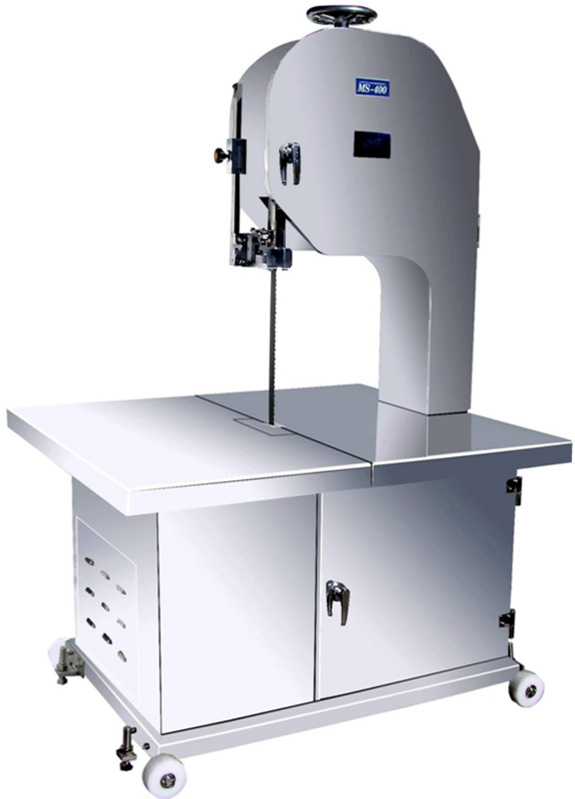

Medium-size band saw MS-400
Medium-size band saw for fresh frozen fish Series②
■Model MS-400
The processing efficiency greatly increases by this one machine.
■High Speed Rotation
It achieves the increasing processing efficiency and the beautiful section by increasing the rate of rotation
■Power Up
It equip the motor which goes 2.2kw to 3.7kw. It is allround player starting bonito up to tuna. It reduces the task of workers.
■SUS304
We use a stainless steel frame of SUS304 which has excellent durability. With 10 years warranty.
■Adhere. With Gutter
you can choose a style of table surface depends upon the stuff you cut.
■Stainless steel tire
We equip this stainless steel tire. It solves the problem of running off of saw blade by the rust corrosion. It is easy to wash by water.
■Beautiful section
The high speed rotary achieves the section beautifuly. It promises the high yield by special saw blade.
■Easy to Clean
It is clean and decent ‘304’ made all stainless steel body. It is rust-proof and easy to wash by water. Can be clean throughout quickly.

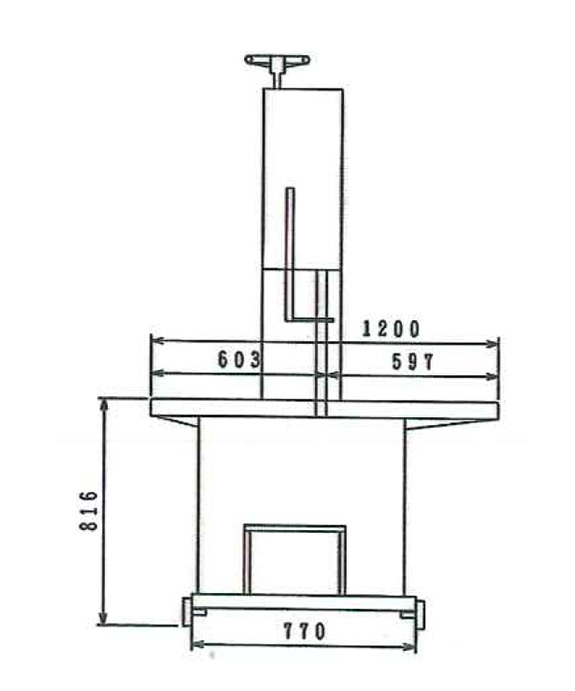

■Machine spesification (unit:mm)
<Standard Machine Specifications>
| Maximum pull cutting height | 470H |
| Table dimension | 1230×1200 |
| Machine dimension | 1230W×1200Ｄ×2048Ｈ |
| All over weight | 440kg |
| Motor | 2.2kw to 3.7kw |
| Power source | Three-phase ciruit Hz50/60 AC 200V～440V |
Four pieces cutting of frozen bonito Chopping into block of frozen tuna
Tail cut sorting of tuna
■Machine specifications
Small-size band saw TM-18
Small-size band saw for fresh frozen fish Series③
■Model TM-18
(Compact round cutting machine for fence and round shape)
＊ Direct driven motor
POINT
■powerful and smooth operation thanks to the configuration of the direct connection of lower wheel with motor
■low noise、no vibration
■adjustable rotation speed of sawing blade with alternative switch/inverter controller
■Providing "Emergency Stop Button"Immediately stop the rotation of saw blade
thanks to the brake controlled by inverter
■Machine dimension (Unit:mm)
| Max. sawing height | 400 |
| Area (table) | 950×900 |
| Hight (table) | 850 |
| Dimension (Machine) | 1050×1000×H1900 |
| Weight | 250kg |
| Motor | 1.5kw 2.2kw 4P |
| Power Supply | 3 Phase 200V 50/60Hz |
Small size band saw for frozen fish
Direct driven motor
■Machine Specifications

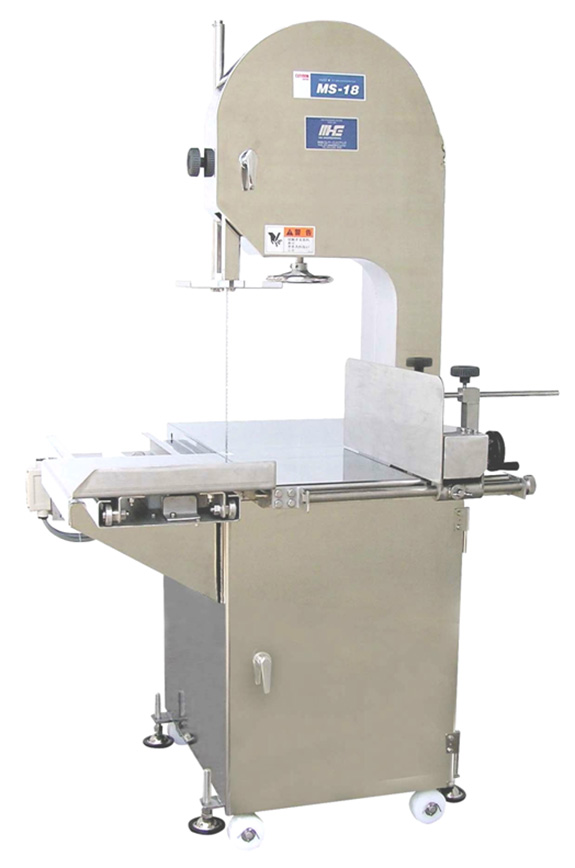

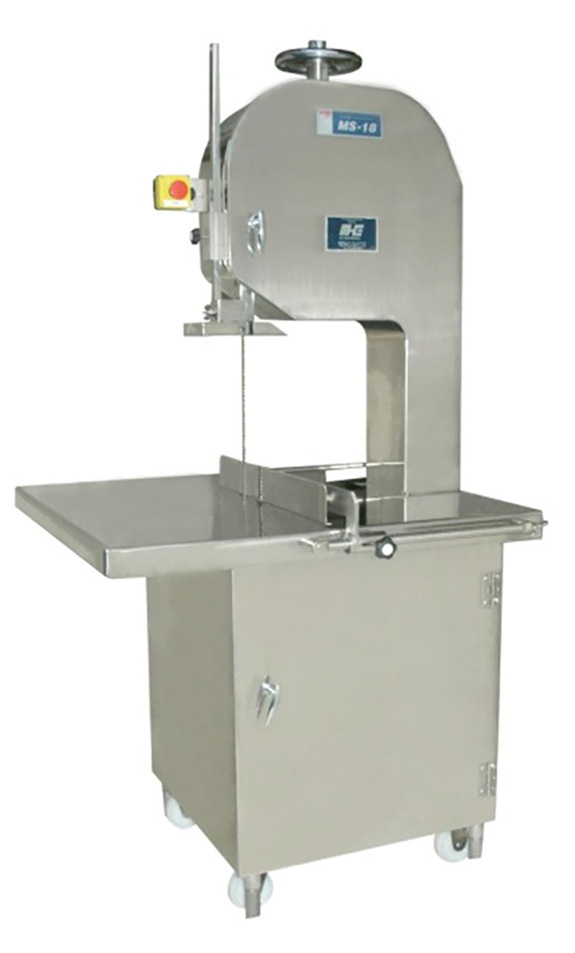

Small-size band saw MS18ST
Small-size band saw for frozen fish Series④
■Model MS18ST
(One side-Table Slide TYpe)
■Keeping the tension of saw blade constant by specific mechanizm
■Quick cleaning possible, thanks to the table lift-up configuration
■High quality finishing and higher yield rate, thanks to the high rotating band saw
■The double seal design assures more water-proof and realize lower maintenance cost.
■Machine dimension (Unit:mm)
| Max. sawing height | 350 |
| Area (table) | 1230×1200 |
| Dimention (Machine) | 1230×1200×H2048 |
| Weight | 440kg |
| Motor | 1.5Kw～2.2Kw |
| Power Supply | 3 Phase 200V 50/60Hz |
One side-Table Slide Type
■Machine Specifications

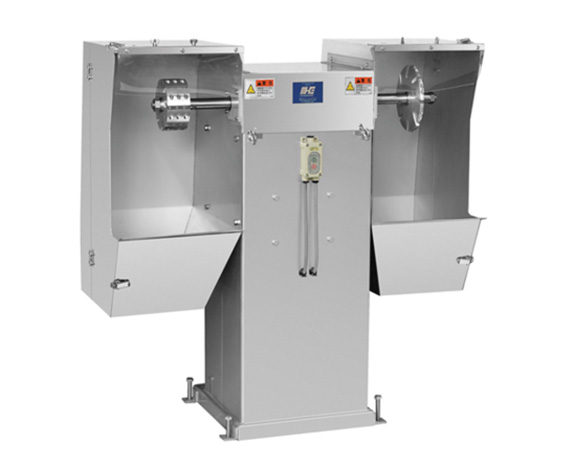

KZ-45 Loining machine for fresh frozen fish
Loining machine for fresh frozen fish Series⑤
■Model KZ-45
It is long-time seller tuna and bonito loining machine which is repute by easiness of using.
Main feature
- It is an economical machine which is easy to use and adopts the structure for easy maintenance.
- It is useful in very various way like flesh taking, removing the main bone, and skinning.
- It designed possible to attach waste conveyor which matches with processing lines.

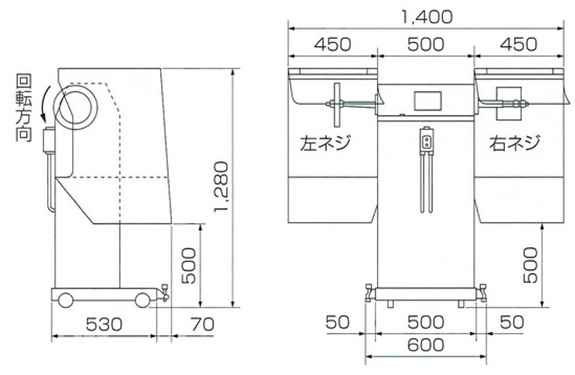

■Machine dimension (Unit:mm)
| Machine size | 1350W×650D×1260H |
| All over weight | 280kg |
| Motor | 1.5kw 4P |
| Power source | Three-phase circuit Hz50/60 AC 200V~440v |
※This product specifications and dimensions may change without prior notice.
■Machine Specifications
It is all stainless steel body which is rust-proof, clean and decent. And easy to wash by water.
■Flat type cutter and round head cutter／Cutter R
■round head cutter／flat blade／safety mesh glove
